Item#: JBLLIVEBEAM3SIL
General Specifications
Driver size: 10 mm / 0.39" Dynamic Driver
Maximum operation temperature: 45 °C
Power supply: 5V 1A
Audio Specifications
Frequency response: 20 Hz – 40 kHz
Impedance: 16 ohm
Sensitivity: 98 dB SPL@1 kHz
Maximum SPL: 96 dB
Microphone sensitivity: -38 dBV/Pa@1 kHz
Dimensions
Earbud: 5 g per pc (10 g combined) / 0.011 lbs per pc (0.022 lbs combined)
Charging case: 72 g / 0.1587 lbs
Earbud dimensions: 22.51 * 31.04 * 23.74 mm
Charging case dimensions: 61 * 51 * 30.25 mm
Control and Connection Specifications
Bluetooth version (Earbud): 5.3
Bluetooth version (Charging case): 5.1
Bluetooth profile version: A2DP V1.4, AVRCP V1.6.2, HFP V1.8
Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
Bluetooth transmitter power (Earbud): <12 dBm (EIRP)
Bluetooth transmitter power (Charging case): <8 dBm (EIRP)
Bluetooth transmitter modulation (Earbud): GFSK, 6/4-DQPSK, 8DPSK
Bluetooth transmitter modulation (Charging case): GFSK
Battery
Earbud battery type: Lithium-ion battery (68 mAh / 3.85 V)
Charging case battery type: Lithium-ion battery (680 mAh / 3.8 V)
Charging time: 2 hrs from empty
Music playtime with BT on and ANC off: Up to 12 hrs
Music playtime with BT on and ANC on: Up to 10 hrs
Music playtime with BT on and True Adaptive ANC on: Up to 9 hrs
Talk time with ANC off: Up to 6 hrs
Talk time with ANC on: Up to 5 hrs
What's in the box?

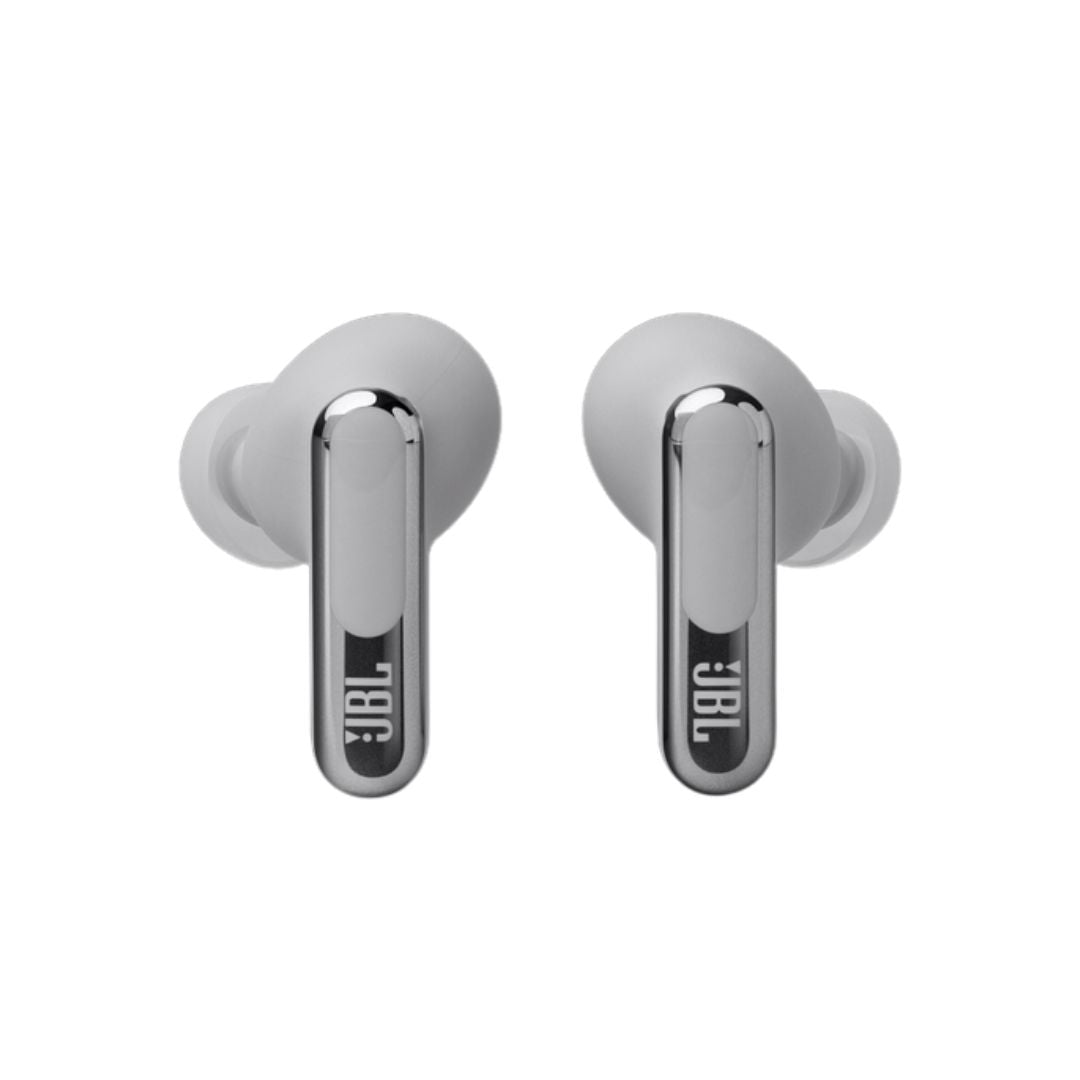

1 × JBL Live Beam 3 earbuds
1 × 3 sizes of ear tips
1 × Type-C USB charging cable

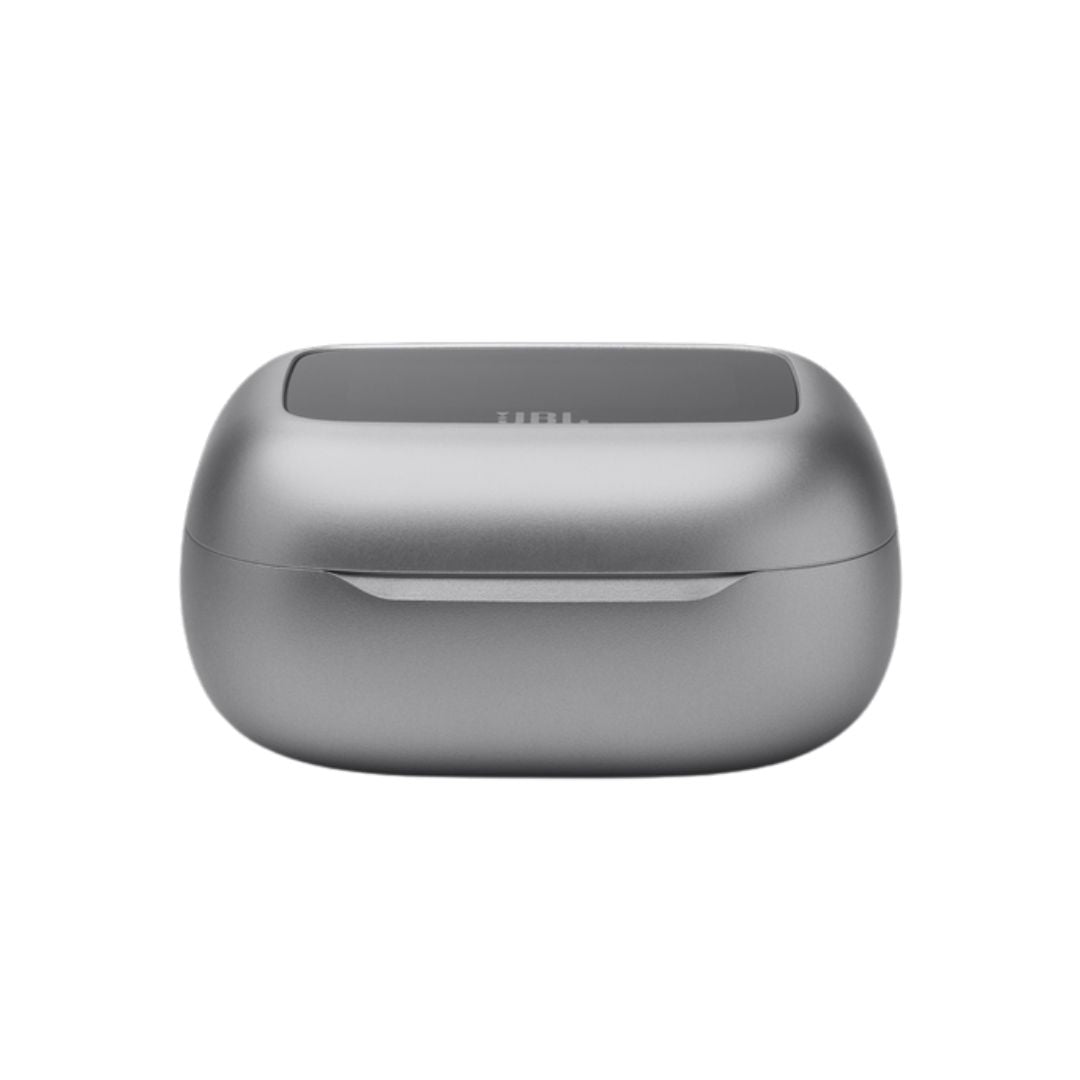

1 × Charging case
1 × Warranty / Warning (W / !)
1 × Product QSG / Safety Sheet (S / i)
